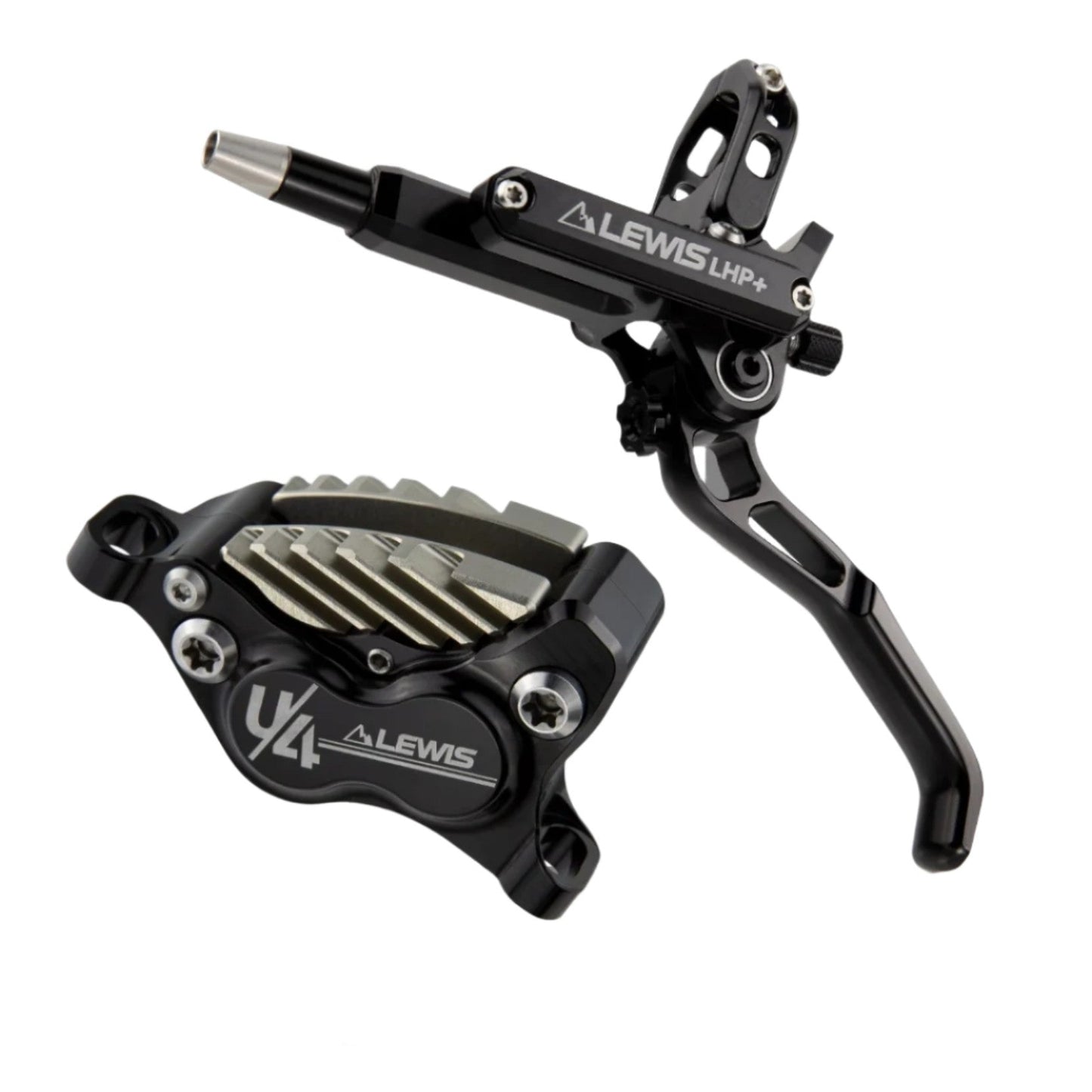

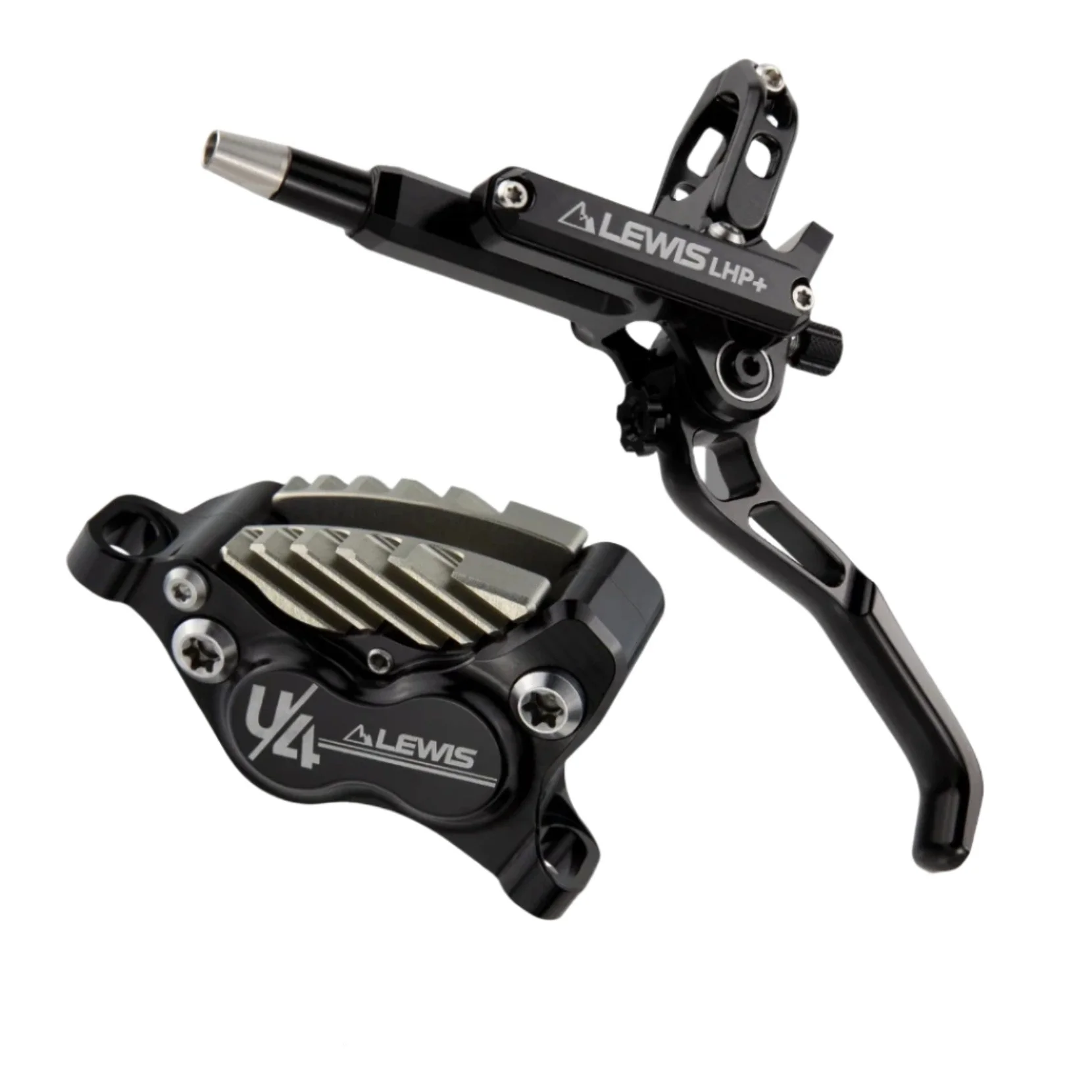

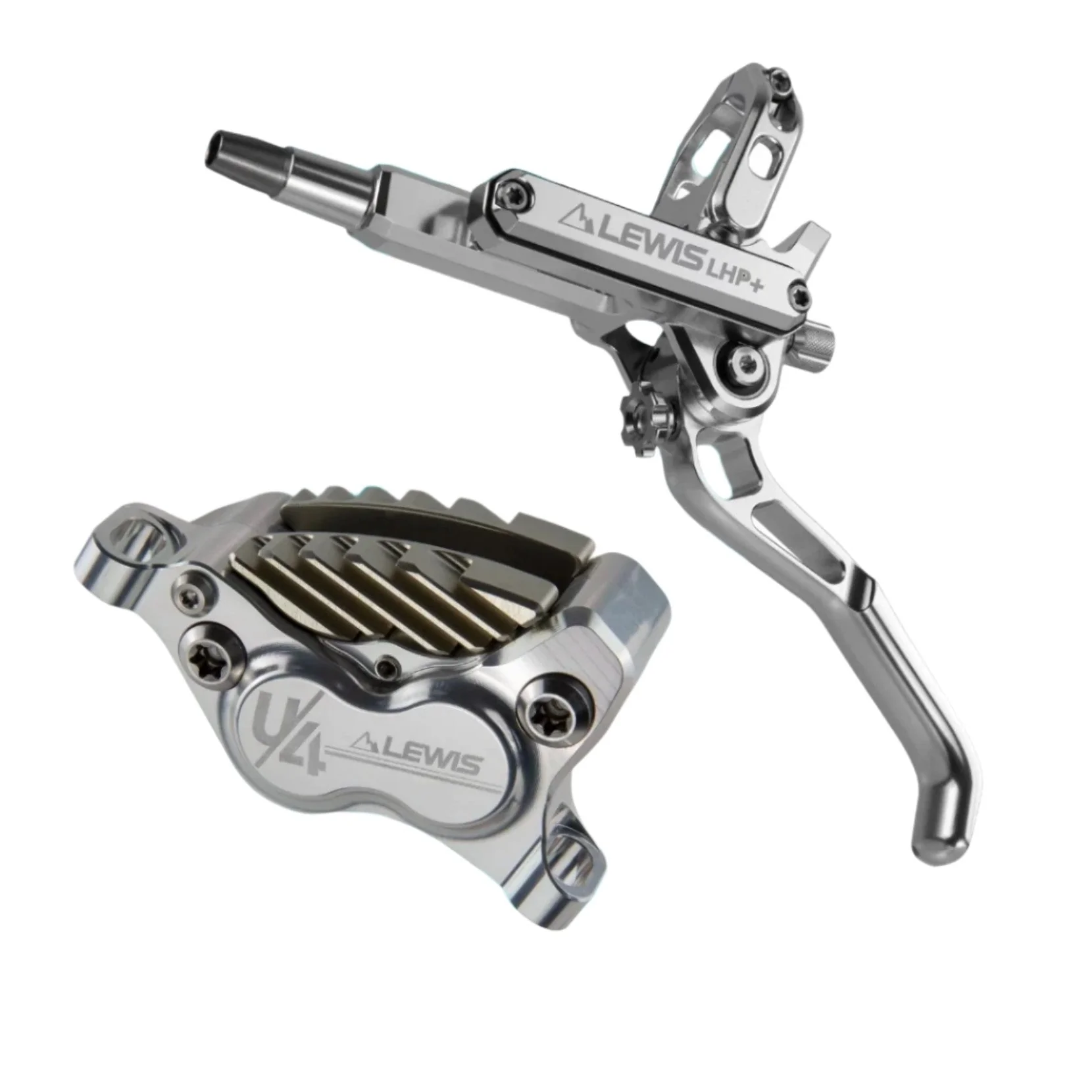

Lewis - LHP U4 Brake set
Lewis - LHP U4 Brake set
The new updated release from LEWIS!
Welcome the LHP series brakes! Refined even further, the new series expands the performance while keeping the key features that you have come to love. All the adjustment and more, the LHP Lever, keeps the reach and bite point adjustment from the LH4 and LHT brakes. These adjustments have had amazing feedback, especially the bite point adjuster, which has more range than any other on the market!
The LHP lever keeps the Ratio adjustment, but simplified the design for a more user-friendly experience.
Calipers have improved heat dissipation by added brake pad fins. The fins are separate to the brake pads, so you don't need to replace them every time you fit new brake pads.
*Brakes come with no leak hose connectors. Brakes come standard with Right Front/Left Rear. Changing to Right rear/ Left Front can be done at home without bleeding the brakes.
S4 Caliper run 2*14mm & 2*17mm pistons.
U4 Calipers run 4*17mm pistons.
S6 Caliper run 6*14mm pistons.
Brake set are sold as a pair, front 90cm hose, Rear 165cm hose.
Share
TECHNICAL SPECIFICATIONS
Full list of specifications
Full list of specifications
WEIGHT - Complete front and rear 597g
Brake Pad - Lewis LP-37, LT-37, Hope Tech 4 pot.
Oil Type - Mineral oil
Rotors size -Â Fits (140 mm | 160 mm | 180 mm | 203 mm | 223 mm)
Bleed Kit - Recommendation EZMTB 2022std
LEVER BODY
Material CNC 7075-T6 Aluminium
Body Finish - Black, Silver, Black & Silver, customized colors
Clamp Color -Â Black, Silver
Clamp Type - Hinged
Screws - Stainless Steel
Adjustable lever reach - External dial
Adjustable bite point -With 2mm Allen key (special tool provided)
LEVER
Material CNC 7075-T6 Aluminum
Colors - Black, Silver, Black & Silver, customized colors
Type - 1 or 2 Fingers
CALIPER SPECS
Material - CNC 7075T6 AluminumColor Black, Silver, Black & Silver, customized colors
MOUNT TYPE - Post mount
Pistons - 2 x 14mm + 2 x 17mm Stainless steel Pistions
Bolts - Stainless Steel
HOSE SPECS
Hose size - Outside Diameter 5mm,Bore 2.2mm
Hose length 90cm front /160 cm different length by request
Hose - finish Silver, Braided
