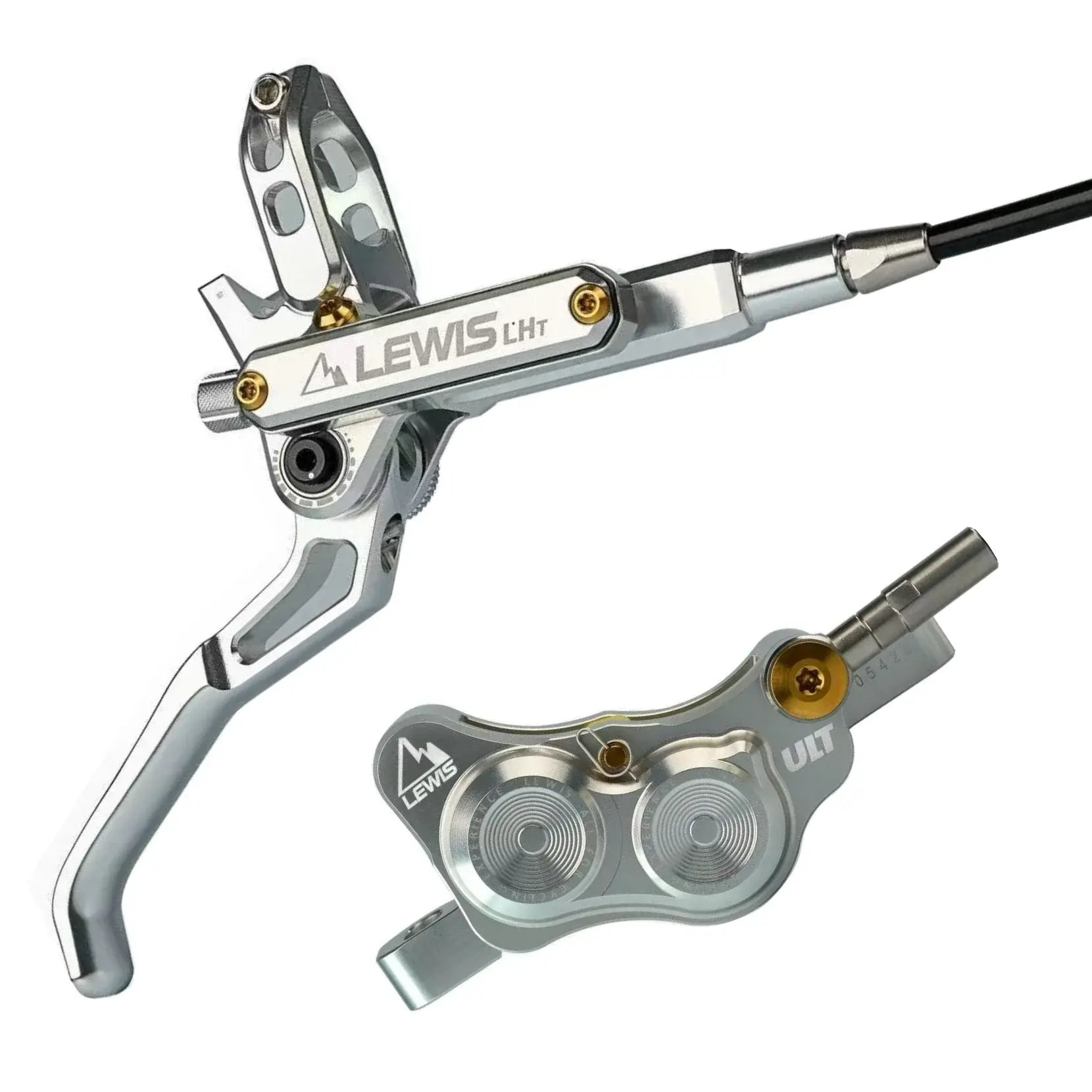

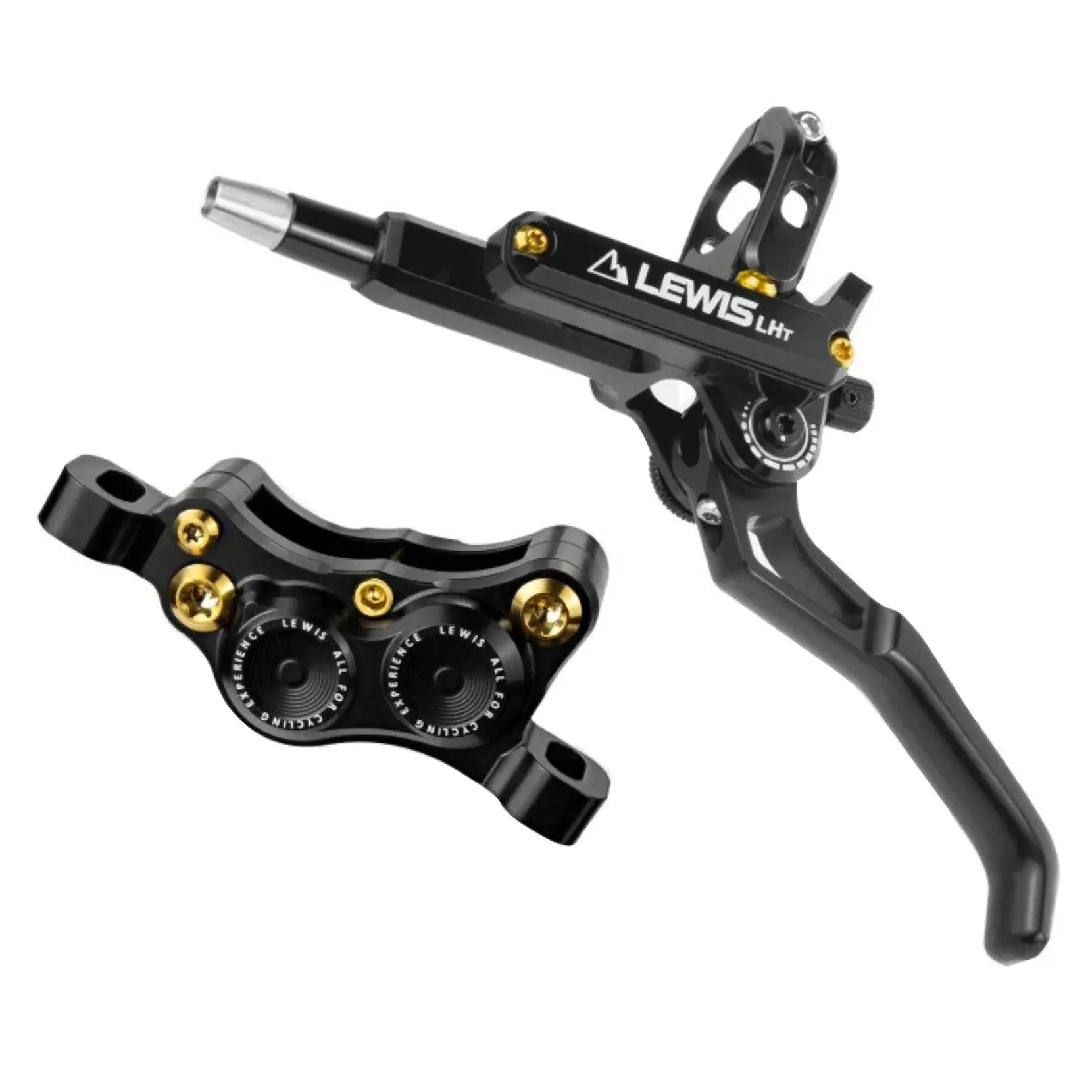

Lewis - LHT Ultimate Brake Set - Titanium bolts & Pistons

Lewis - LHT Ultimate Brake Set - Titanium bolts & Pistons

Regular price €559,99 EUR
Regular price Sale price €559,99 EUR
Sale Sold out

The Ultimate has arrived! - for the Ultimate in adjustability and performance!

The LHT is LEWIS premium level Braking system full of innovation and patented technology.

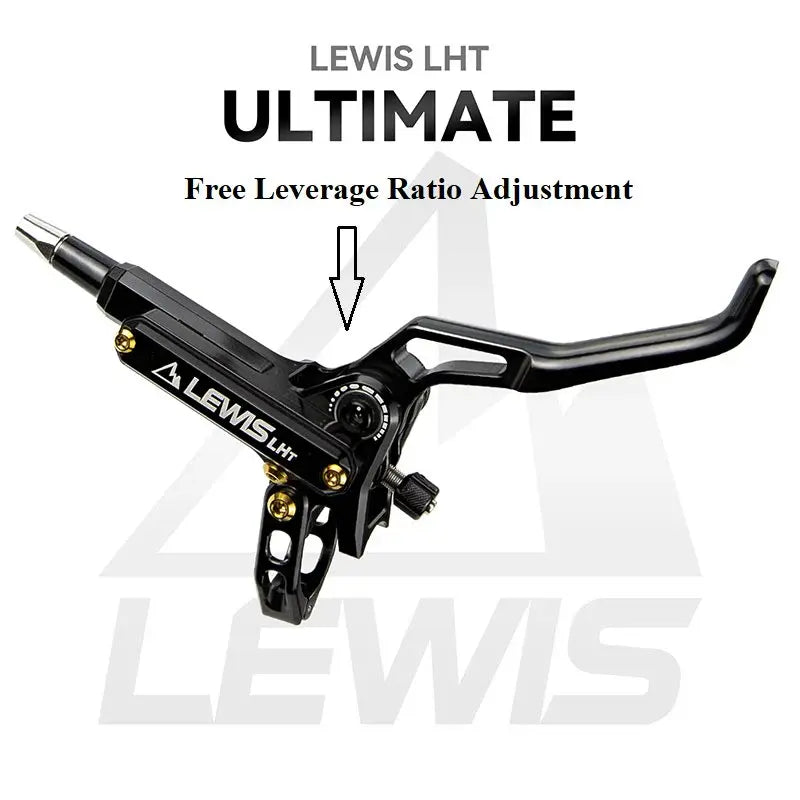

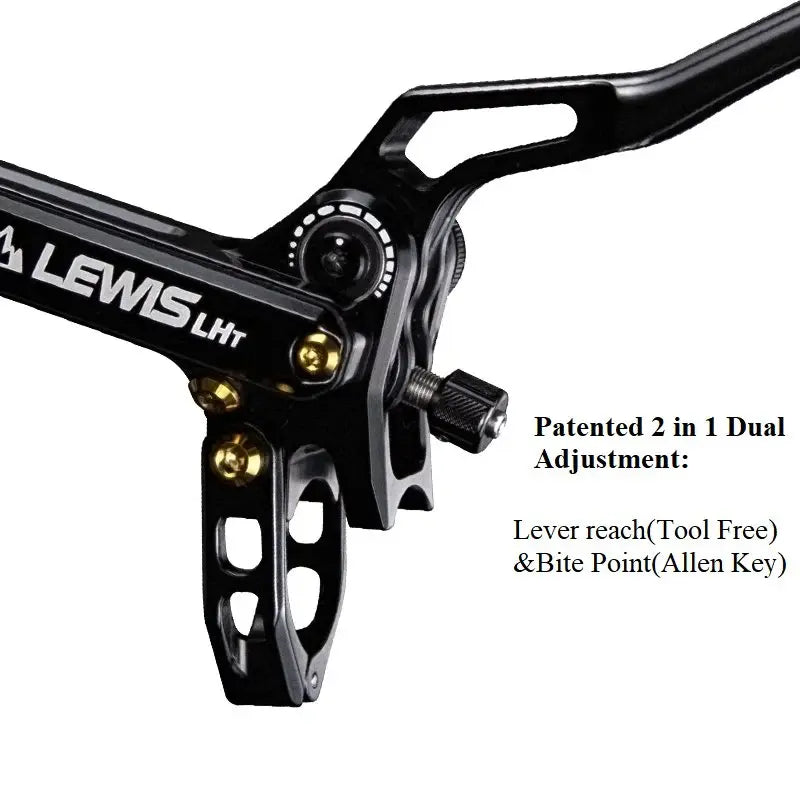

The main difference to the LH4 is the Lever Ratio Adjustment. This is the third level of adjustment that no other brake system has. The first 2 levels are Lever Reach Adjustment and Bite Point Adjustment. The third adjustment lets you adjust the leverage applied to the pistons, in other words, it will adjust Power Level and Pitch of the lever.

But that's not all, we also fully kitted the build with Titanium bolts and pistons! This looks so sick, but also adds strength and lower coefficient of linear heat expansion compared to steel.

The LHT has even more power due to larger pistons and increased leverage ratio.

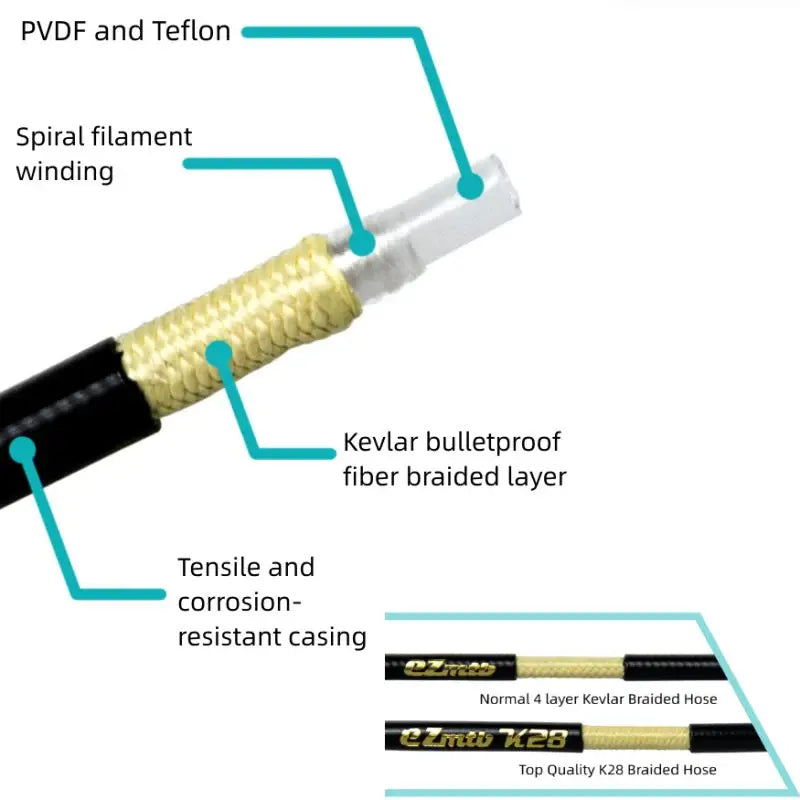

Fully sealed system ready to ride out of the box, custom larger brake pads LP/TP-40 are used, the hose is new K28 Kevlar braided 165cm rear and 90cm Front length.

TECHNICAL SPECIFICATIONS

Full list of specifications

WEIGHT - Complete front and rear 639g

Brake Pad - Lewis LP-40 & TP-40

Oil Type - Mineral oil

Hose length - 90cm front / 165cm Rear

Rotors size - Fits (140 mm | 160 mm | 180 mm | 203 mm | 223 mm)

Bleed Kit - Recommendation EZMTB 2022std

LEVER BODY

Material CNC 7075-T6 Aluminium

Body Finish - Black, Silver

Clamp Color - Black, Silver

Clamp Type - Hinged

Screws - Stainless Steel

Adjustable lever reach - External dial

Adjustable bite point -With 2mm Allen key (special tool provided)

Adjustable Lever Ratio - With 2mm Allen key

LEVER

Material CNC 7075-T6 Aluminum

Colors - Black, Silver

Type - 1 or 2 Fingers

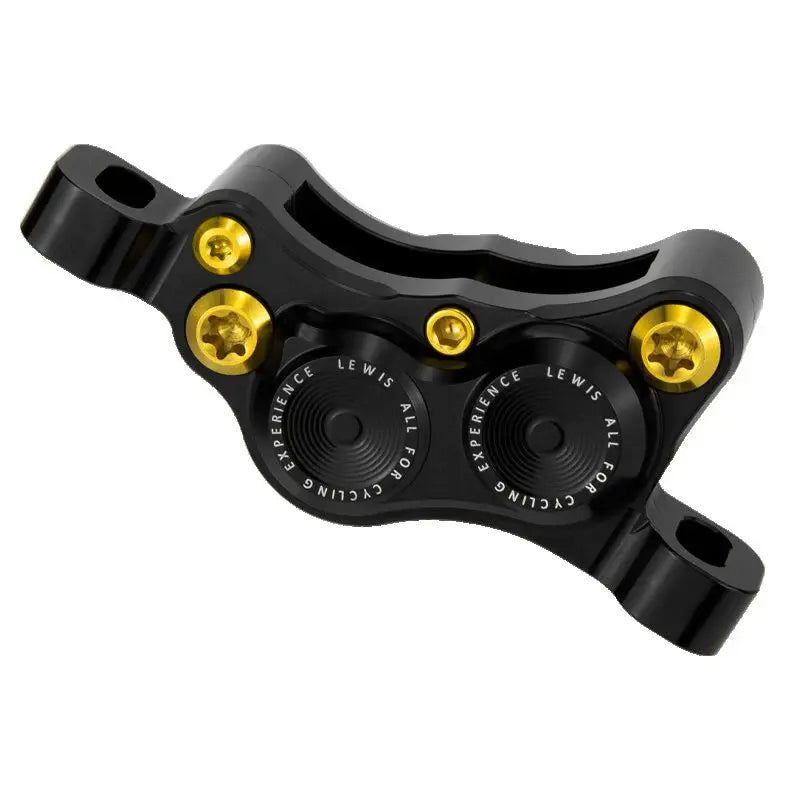

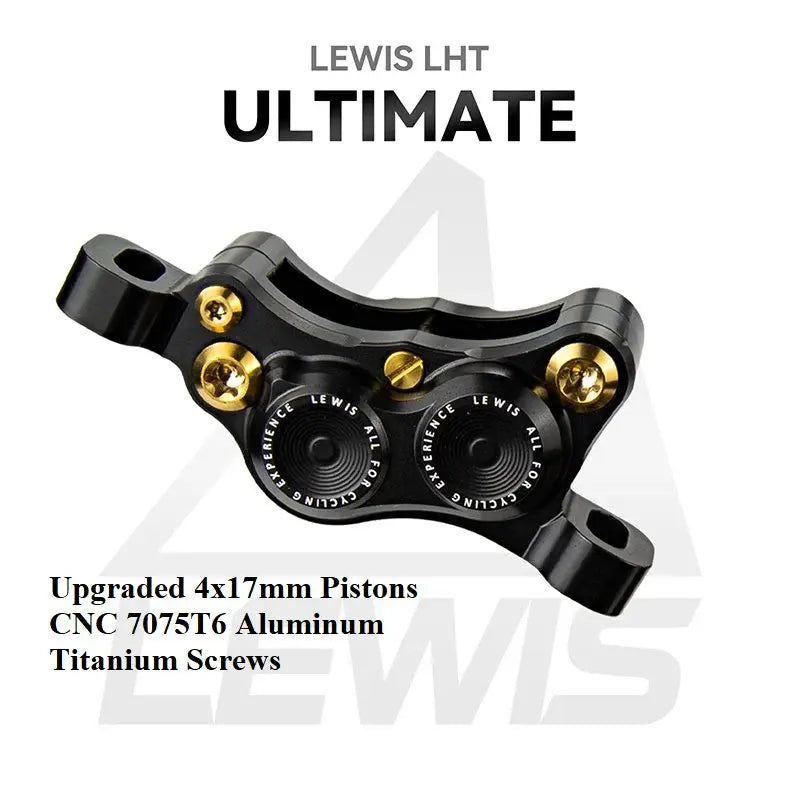

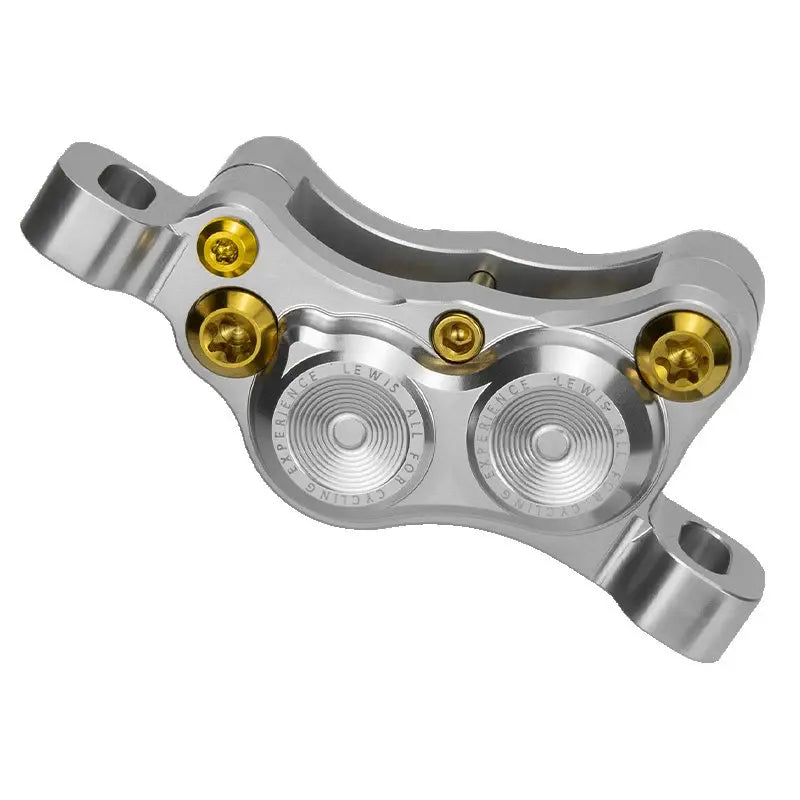

CALIPER SPECS

Material - CNC 7075T6 Aluminium

Color - Black, Silver

Mount type - Post mount

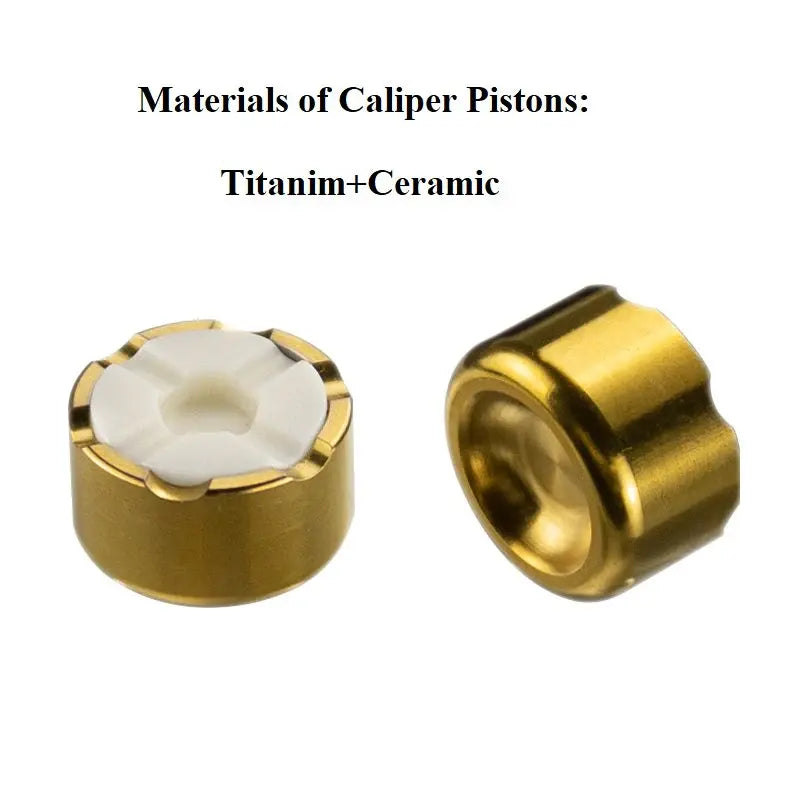

Pistons - 4 x 17mm Titanium and ceramic

Piston bolts - Titanium

HOSE SPECS

Hose size - Outside Diameter 5mm,Bore 2.2mm

Hose finish - Black EZmtb K28
