Lewis Technology
pinza singola LH4 / LV4
pinza singola LH4 / LV4
Impossibile caricare la disponibilità di ritiro

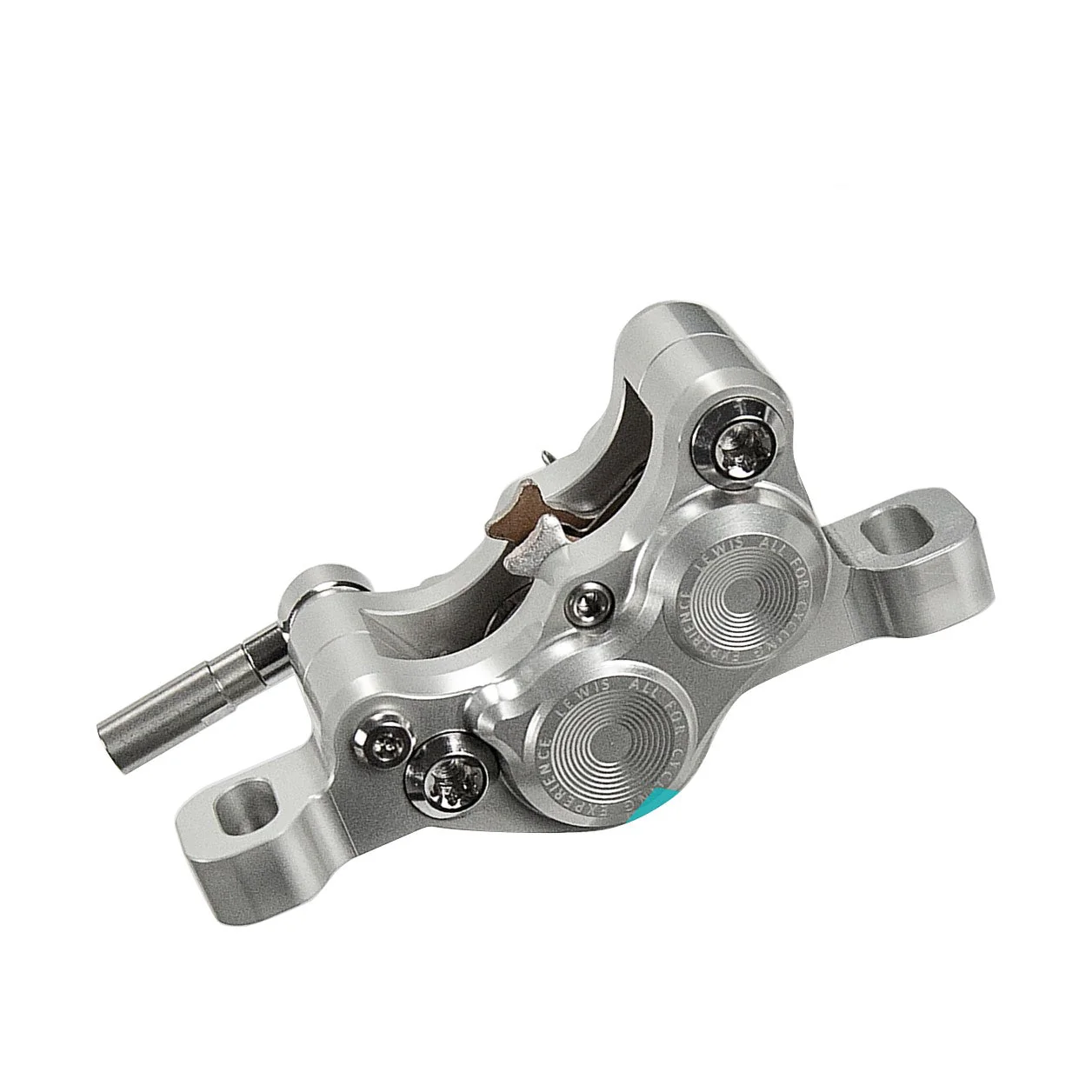

Pinza di ricambio solo per freni LH4 LV4.
Il calibro può essere utilizzato per la parte anteriore o posteriore.
Share
TECHNICAL SPECIFICATIONS
Full list of specifications
Full list of specifications
WEIGHT - Complete front and rear 597g
Brake Pad - Lewis LP-37, LT-37, Hope Tech 4 pot.
Oil Type - Mineral oil
Rotors size - Fits (140 mm | 160 mm | 180 mm | 203 mm | 223 mm)
Bleed Kit - Recommendation EZMTB 2022std
LEVER BODY
Material CNC 7075-T6 Aluminium
Body Finish - Black, Silver, Black & Silver, customized colors
Clamp Color - Black, Silver
Clamp Type - Hinged
Screws - Stainless Steel
Adjustable lever reach - External dial
Adjustable bite point -With 2mm Allen key (special tool provided)
LEVER
Material CNC 7075-T6 Aluminum
Colors - Black, Silver, Black & Silver, customized colors
Type - 1 or 2 Fingers
CALIPER SPECS
Material - CNC 7075T6 AluminumColor Black, Silver, Black & Silver, customized colors
MOUNT TYPE - Post mount
Pistons - 2 x 14mm + 2 x 17mm Stainless steel Pistions
Bolts - Stainless Steel
HOSE SPECS
Hose size - Outside Diameter 5mm，Bore 2.2mm
Hose length 90cm front /160 cm different length by request
Hose - finish Silver, Braided
